1991 MONSTER Miata Chevy v8 Swapped













Vehicle Description
Monster Miata LS Chevy V8

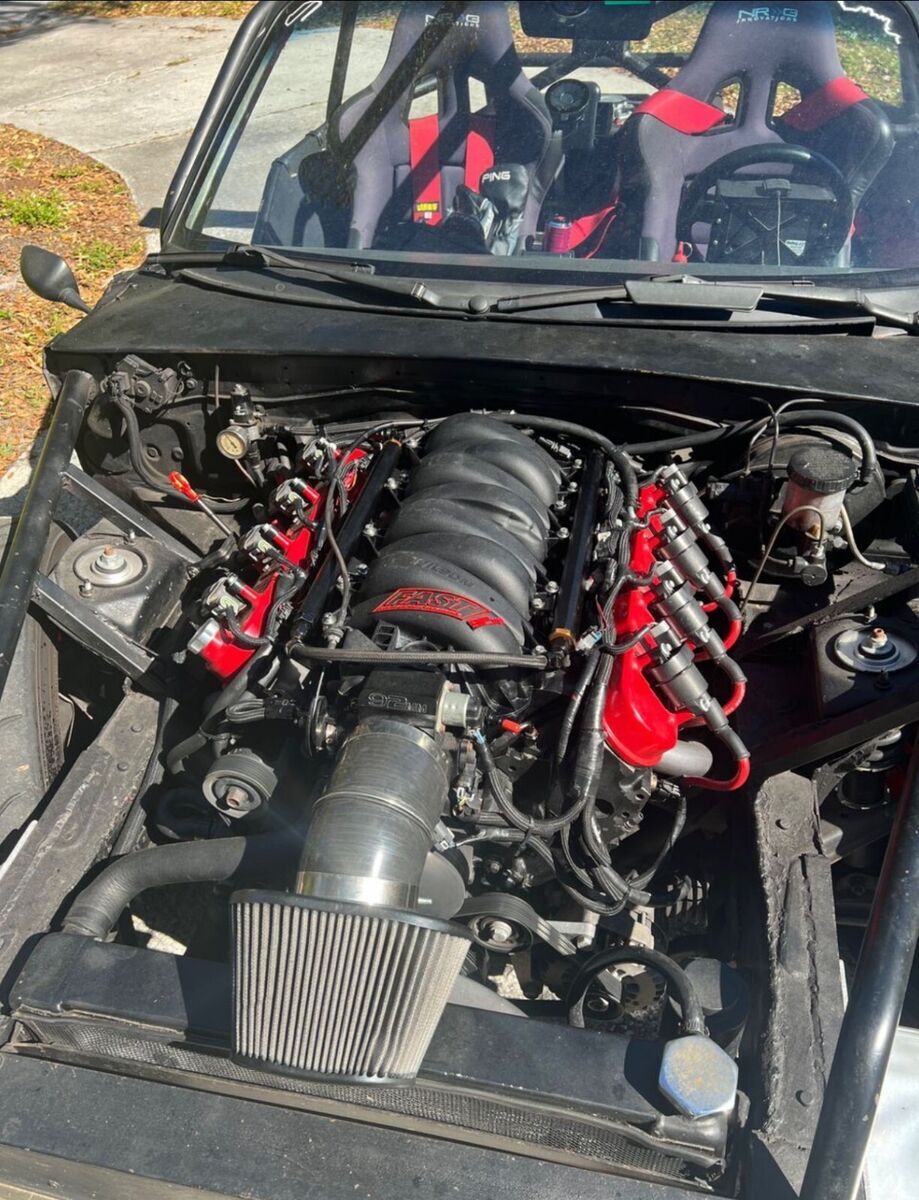

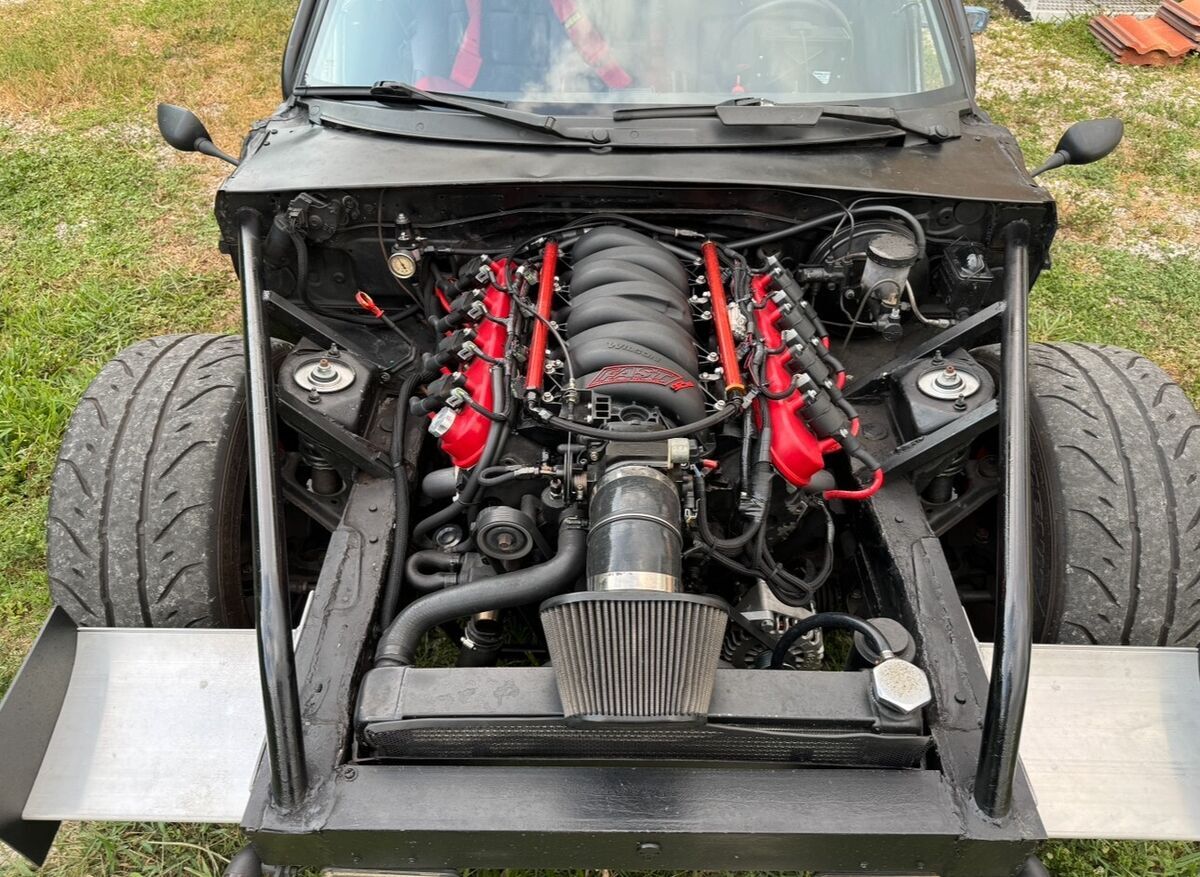

Chevrolet Engine:
2014 5.3 L LS (Tahoe iron block)
862 Heads (unported) Factory Valves (3 angle polished seats)

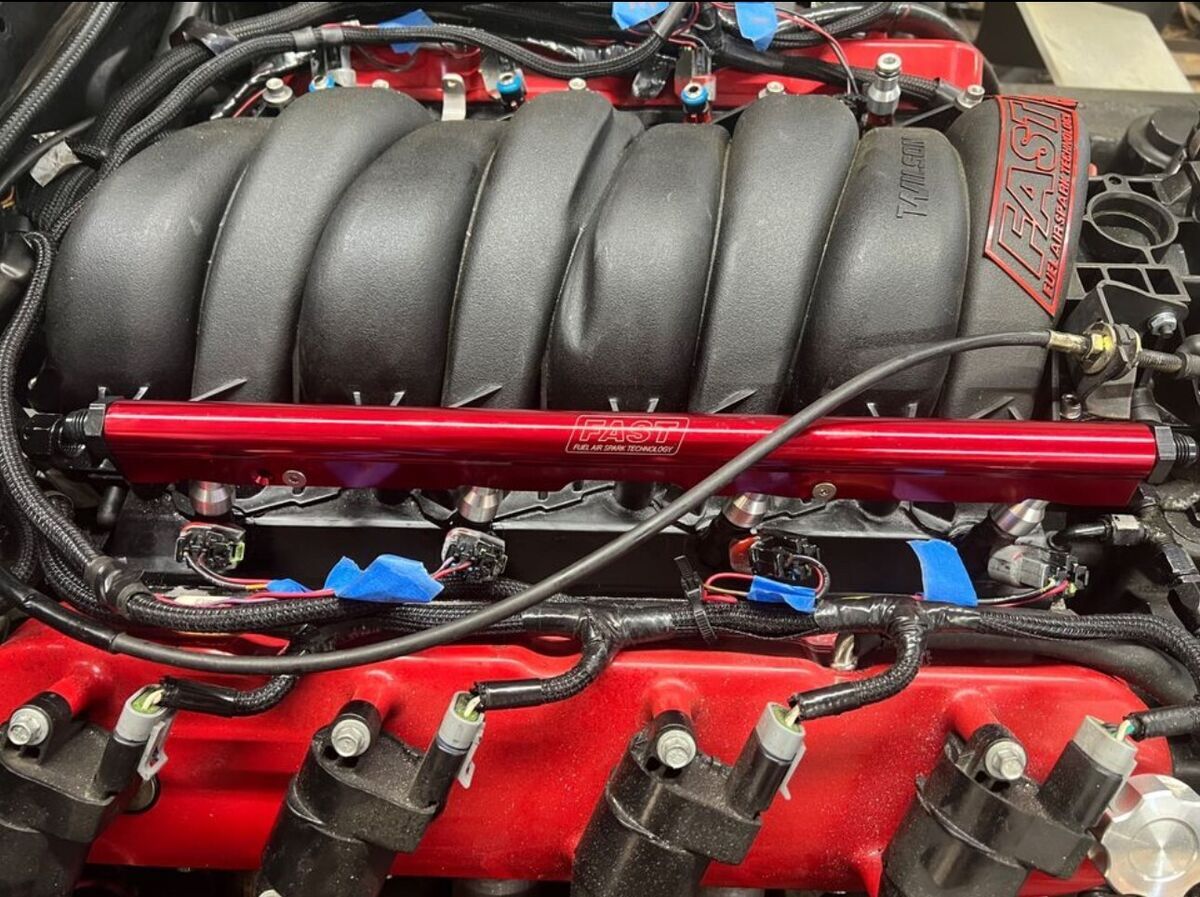

FAST 92 mm intake
FAST Fuel Rails
Fuel Injection
E85
SS2 cam, PAC 1218 Springs, Gen III/IN conversion cam gear
Flat top GM Pistions
GM Factory 5.3 rods
GM Factory 5.3 crank, new bearings
Holley powder coated valve covers
GM Factory truck coils
10mm plug wires
NGK TR6 V-Power Plugs,
Holley 302-2 oil pan
Wix57060 Filter (or AC Delco PF-48E)
Holley 302 -15 oil Dip Stick (GM P/N 12669528 and 12625031)
Trimmed F-Body Windage Tray
Mobile One Synthetic Oil
Griffin LS Swap3” Radiator
GM F-Body Water Pump
Meling Standard pressure/volume oil pump
135 Amp AC Delco Alternator
ITC BilletLow-Mount Alternator Mount
GM Factory F-Body Balancer
Transmission:
2002 Z28 Camaro T56 6-speed manual swap
Racing clutch
Custom 3” driveshaft (Univeral Driveshaft, Tampa)
Pro 5.0 Short Throw Shift Kit
Billet Aluminum Shift Knob
Mobile One ATF Fluid

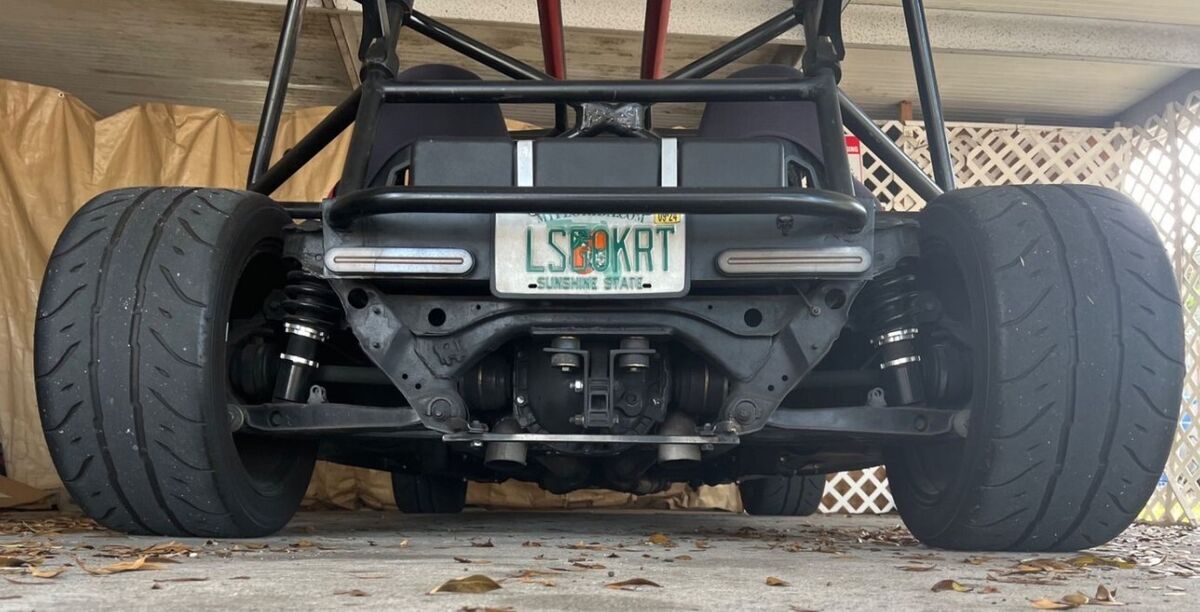

Differential:
Ford 8.8 Cobra IRS case (1997 Lincoln Mark 8)
Lincoln Town Car Limited Slip Differential (LSD) shaved down to fit Mark 8 case
Ford Racing 3.73 gear
Mobile One Gear Oil with Motorcraft Friction Modifier
Axles:
Modfied Cobra Axles with Billet Miata hub from (600 Horse Power - The Driveshaft Shop)
Exhaust:
Kooks Long Tubes from V8 Roadsters, into 3” flex, 3” X-Pipe, #’ Resonators
Suspension, Brakes, Wheels:
Factory Miata Front and Rear Control Arms
Factory Miata rubber bushings
Miata ball joints (Scitoo)
New Tie rod ends.
V8R DSD Coilovers 10 / 7kg/mm (560 / 392 ib/in)
Wildwood 11.75” BBK with 4 piston calipers
Miata NB Sport Rear Caliper / Rotors
Miata Factory Manual Steering Rack
Moog front hubs (WJB WA513152)
Konig Flow-Flormed Wheels 17X10 Rear, 17X0 Front
Falken RT660 Tires 275/40-17 Rear, 245/50-17 Front (NO track sessions)
Chassis:
V8 Roadsters Front Frame
V8 Roadsters T56 Transmission Crossmember
V8 Roadsters Frame Rails
Monster Miata Front Differential Mount
Custom Rear Differential Mount
Interior:
NRG Steering Wheel 13:
NRG Quick Release Steering Wheel Hub
NRG Seats
Jegs 3” Harnesses (2-25, FSI 5.1 Spec)
Holley 7” Dash
Holley Terminator X
Holley Harness
Street Leash Fuse/Relay Box

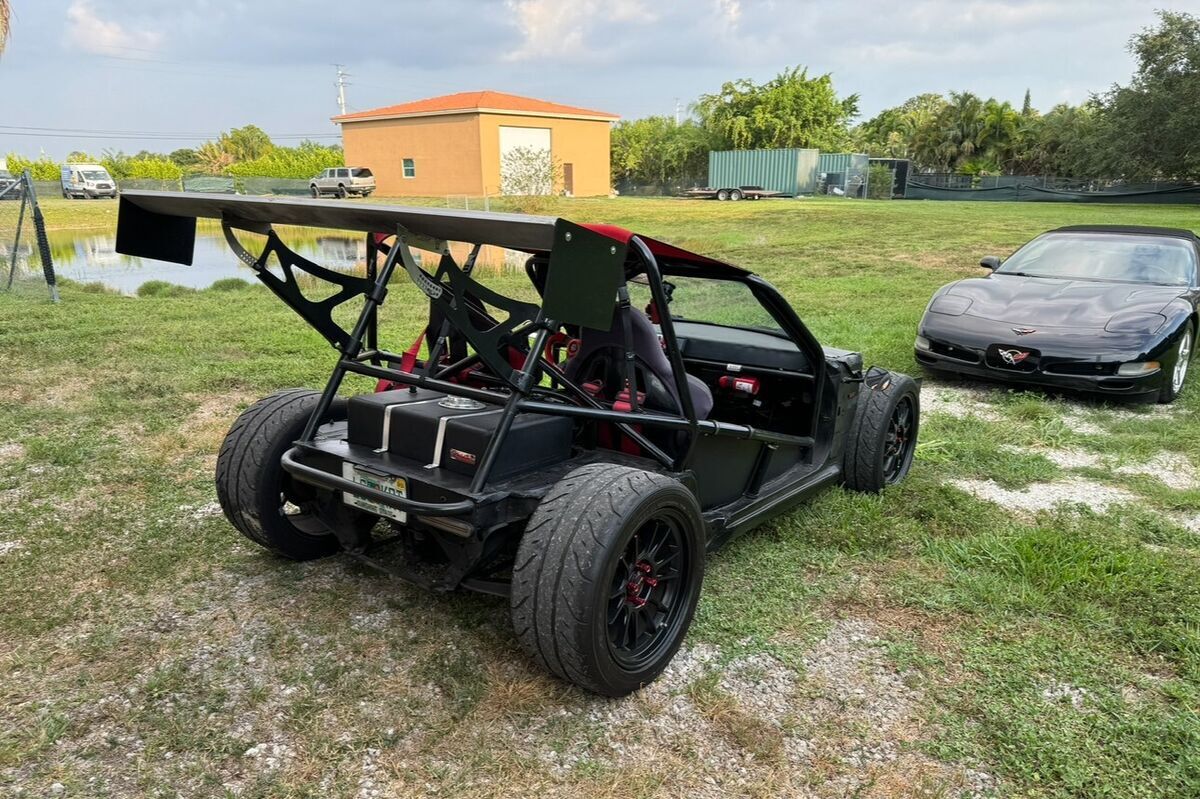

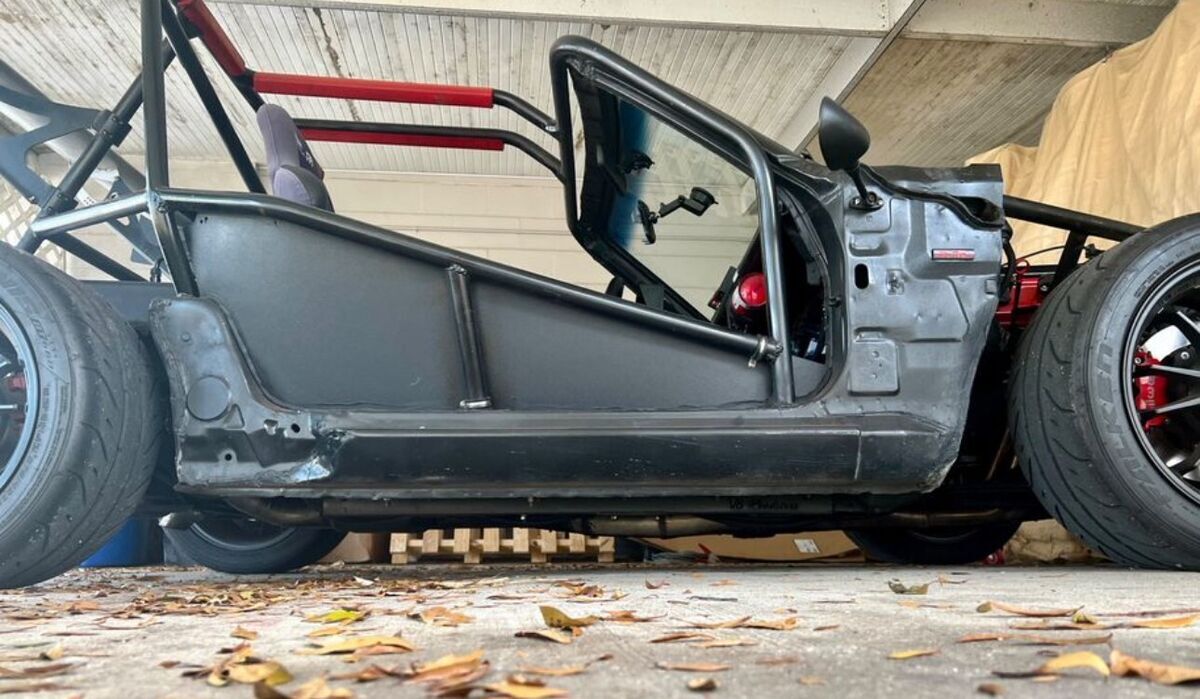

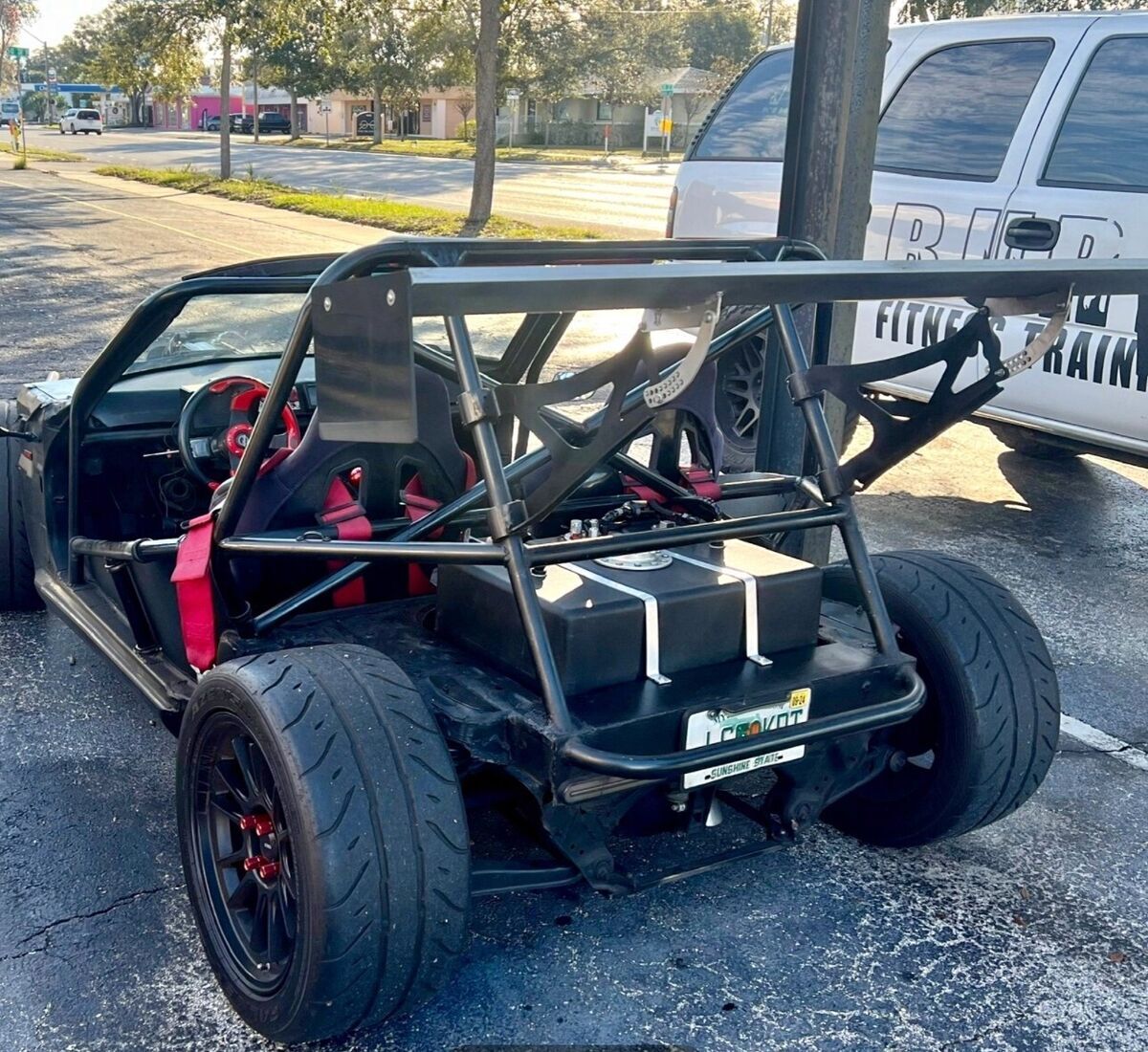

Cage/Wing:
1.5” / 0.095” Chromoly, TIG Welded at main joints
Customized Exomotive Exocet Wing Mount
Nine Lives Racing Custom 70” Wing, ¾”Gyrney Flap, StandardEnd Plates
Dyno Results April 2024:
397 Rear Wheel Horsepower (WHP) at 6,000 Revolutions Per Minute (RPM)
387 ft-lbs at 4,750 RPM
