Vehicle Description

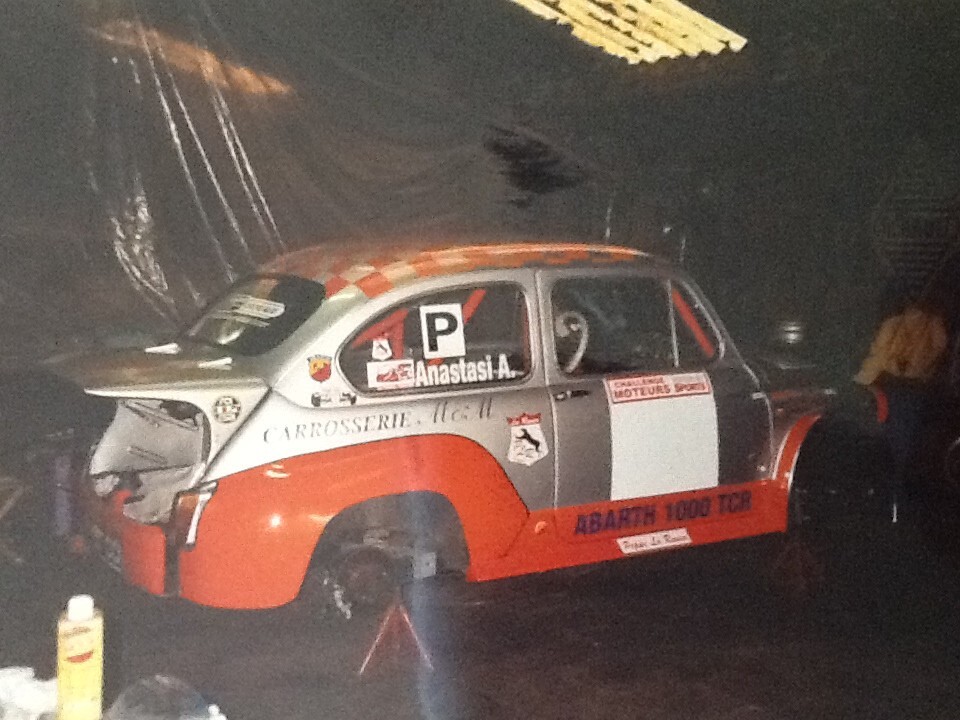

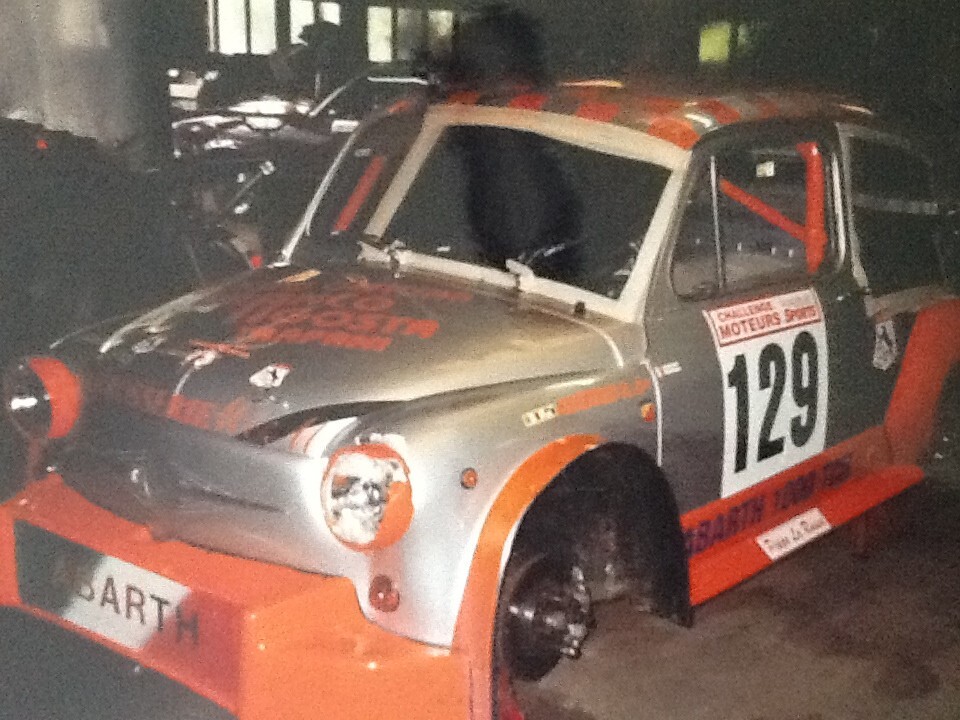

Car was built in Europe for sedan racing in Europe. Was imported to the US in 2008 and been in private collection since importation. SCCA Vintage log book, clear Florida title.

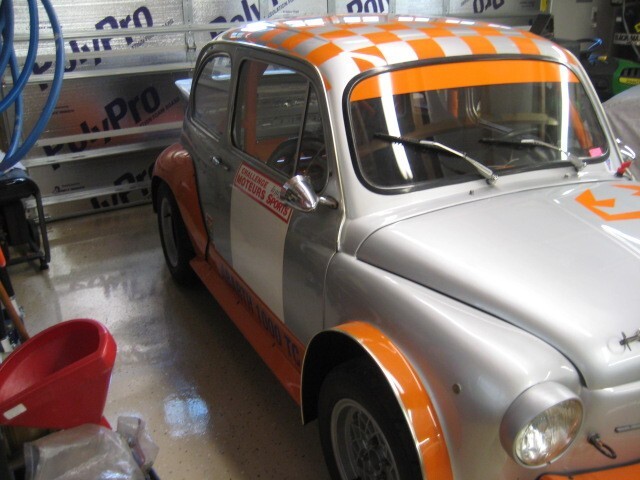

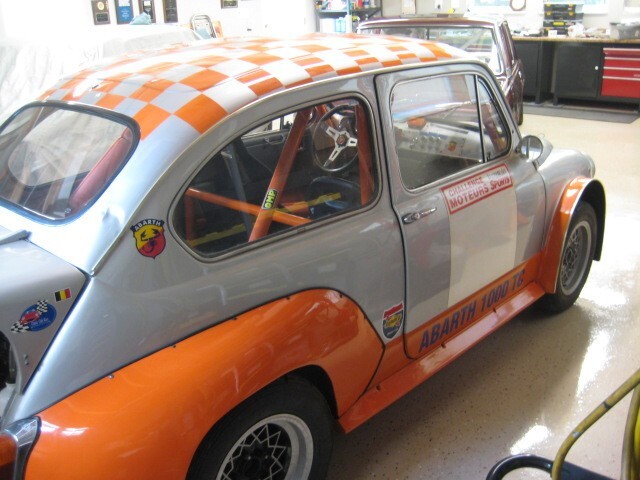

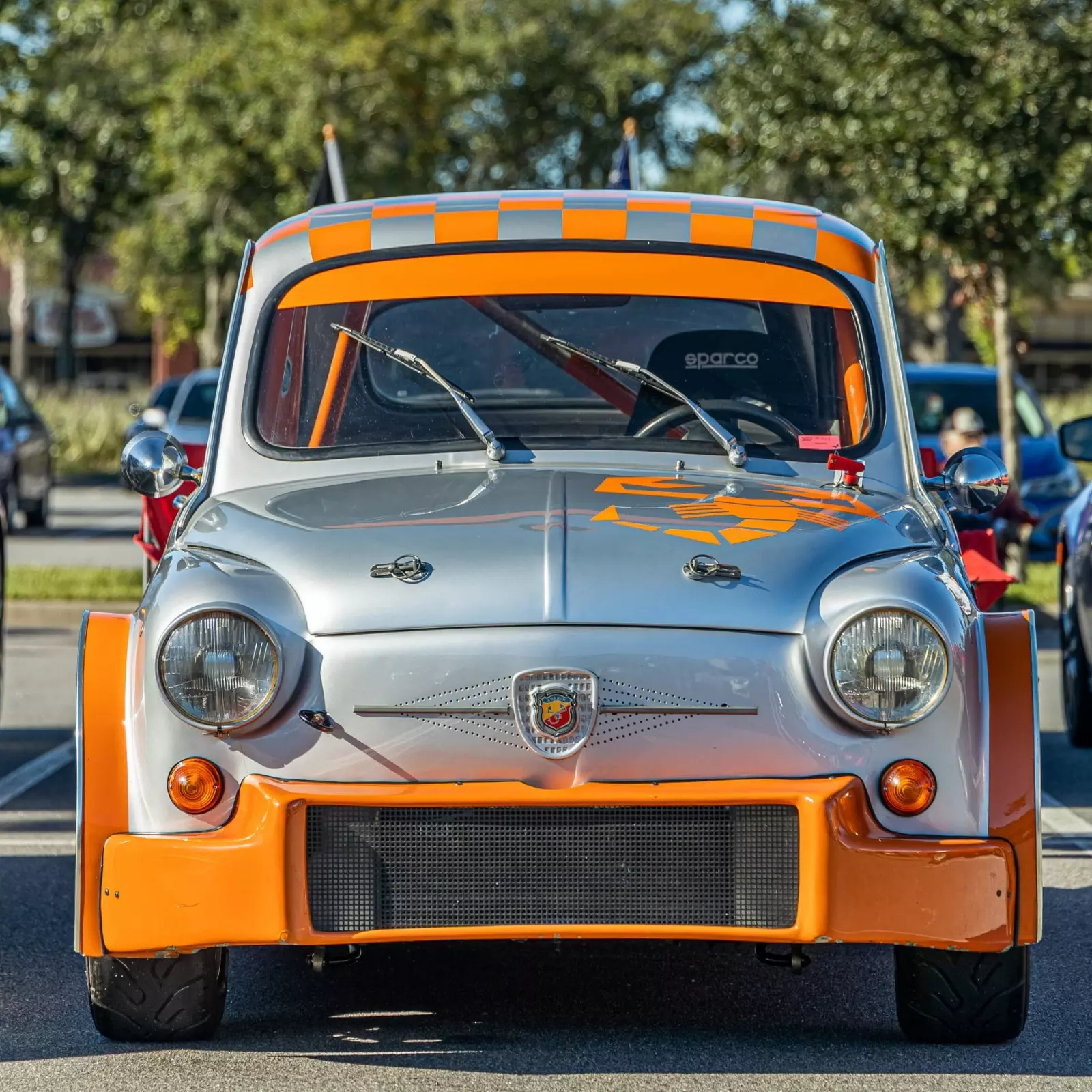

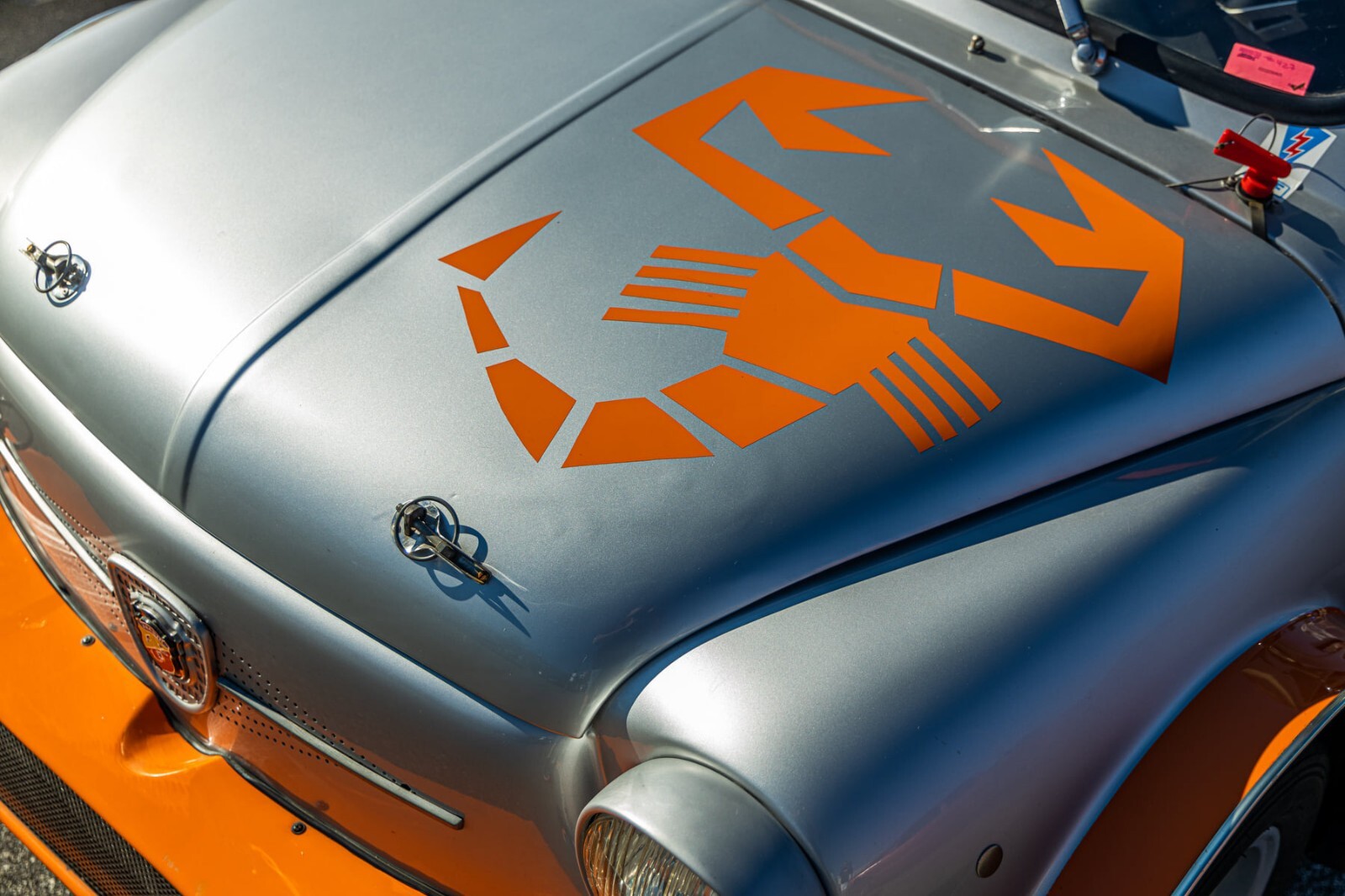

Body: Steel body, doors, and hood. Flares, front radiator shroud, side panels and engine cover are fiberglass.

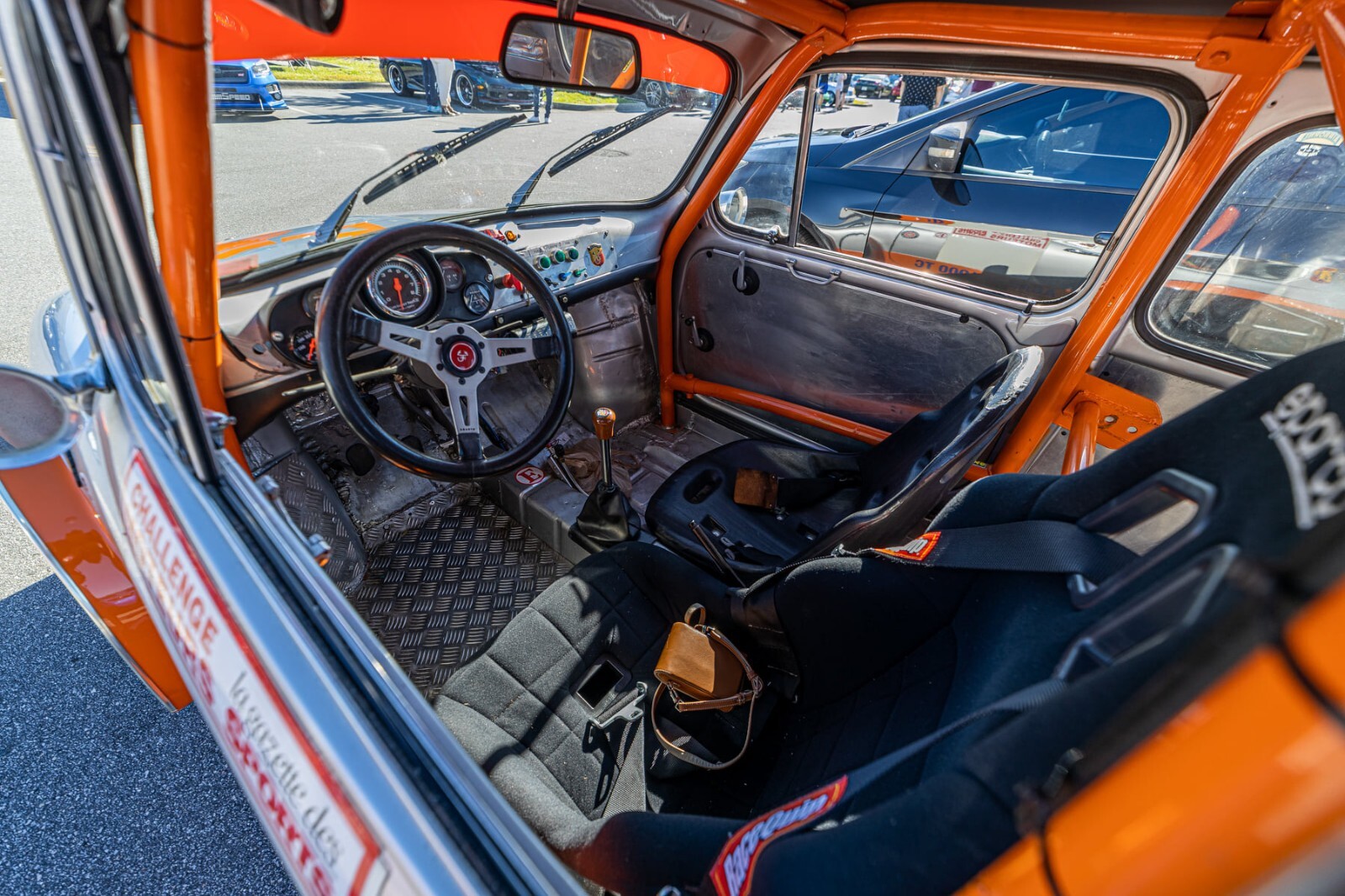

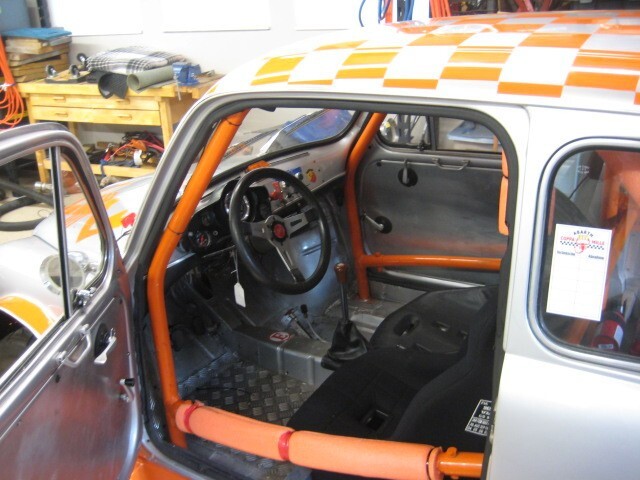

Interior: Bolt in roll cage, Sparco FIA Drivers seat, molded passenger seat, drivers belts SF, aluminum door panels, fire bottle system, hand held fire extinguisher, dash has speedometer, tachometer with shift light and rev limit pill, temp gauges, oil pressure gauge, low oil pressure light, alternator charging light, switches for fuel pump, electric cooling fan, headlights.

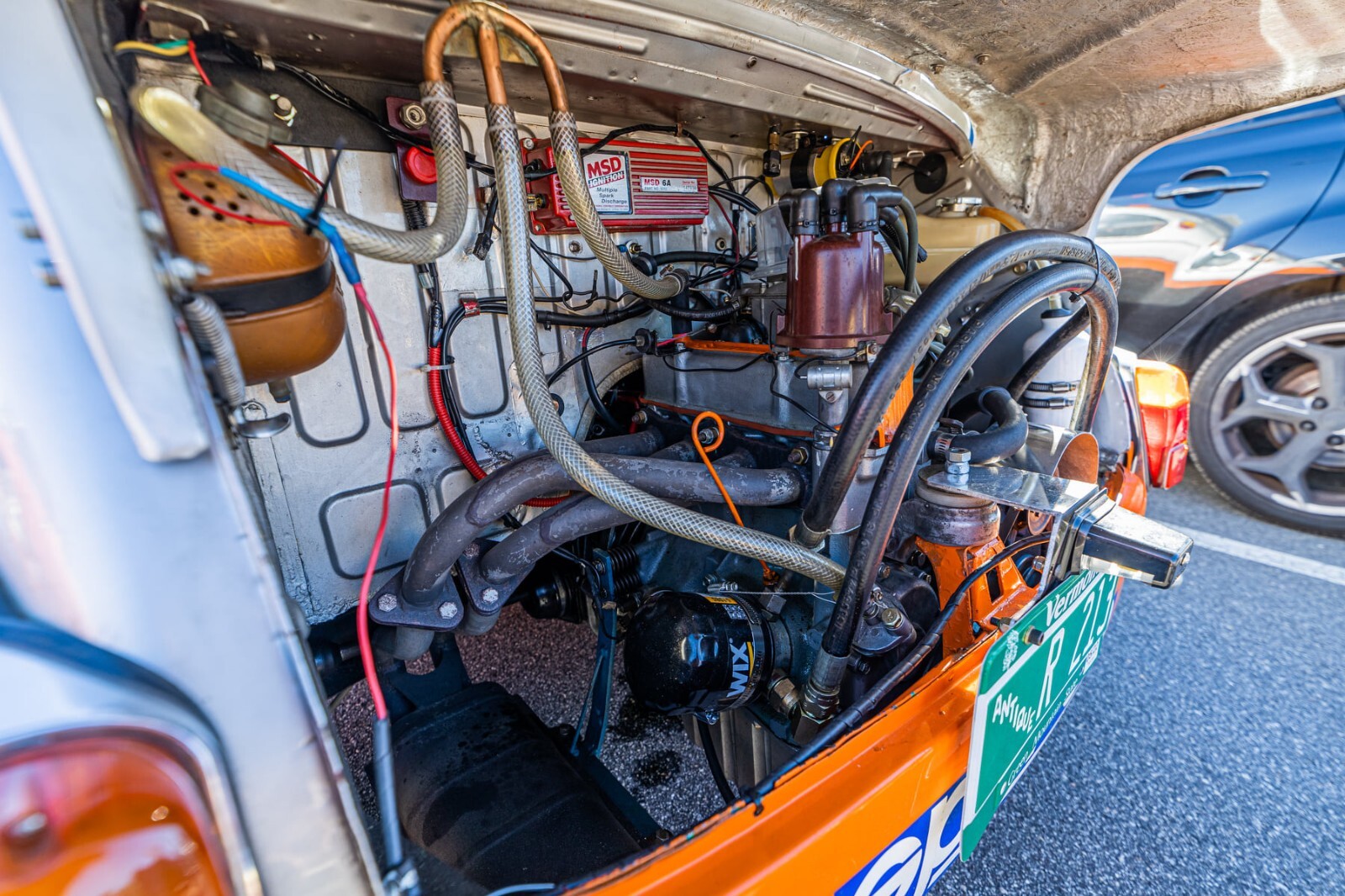

Engine: Abarth A 112ab000, Weber 36 DCNF A49 100 carburetor, forged Abarth crank, pinned rod caps and polished rods, Venolia piston 67.8mm, Total seal rings, new water pump, MSD 6, Abarth exhaust, oil cooler.
Transmission/Clutch, 4 speed gear box, 3 fingered clutch disc with race cover, aluminum flywheel.
Suspension /Brakes: Lowered with leaf spring front, front sway bar, coil springs in rear with droop limiting cables, steering converted to rack and pinion, Brakes 4 wheel discs, dual mater cylinder, Stainless steel brake lines, emergency brake.
Wheels/Tires Fronts 13X6 wheels, front tires 185/60/13, Rear wheels 13x7 rear tires 205/60/86H.

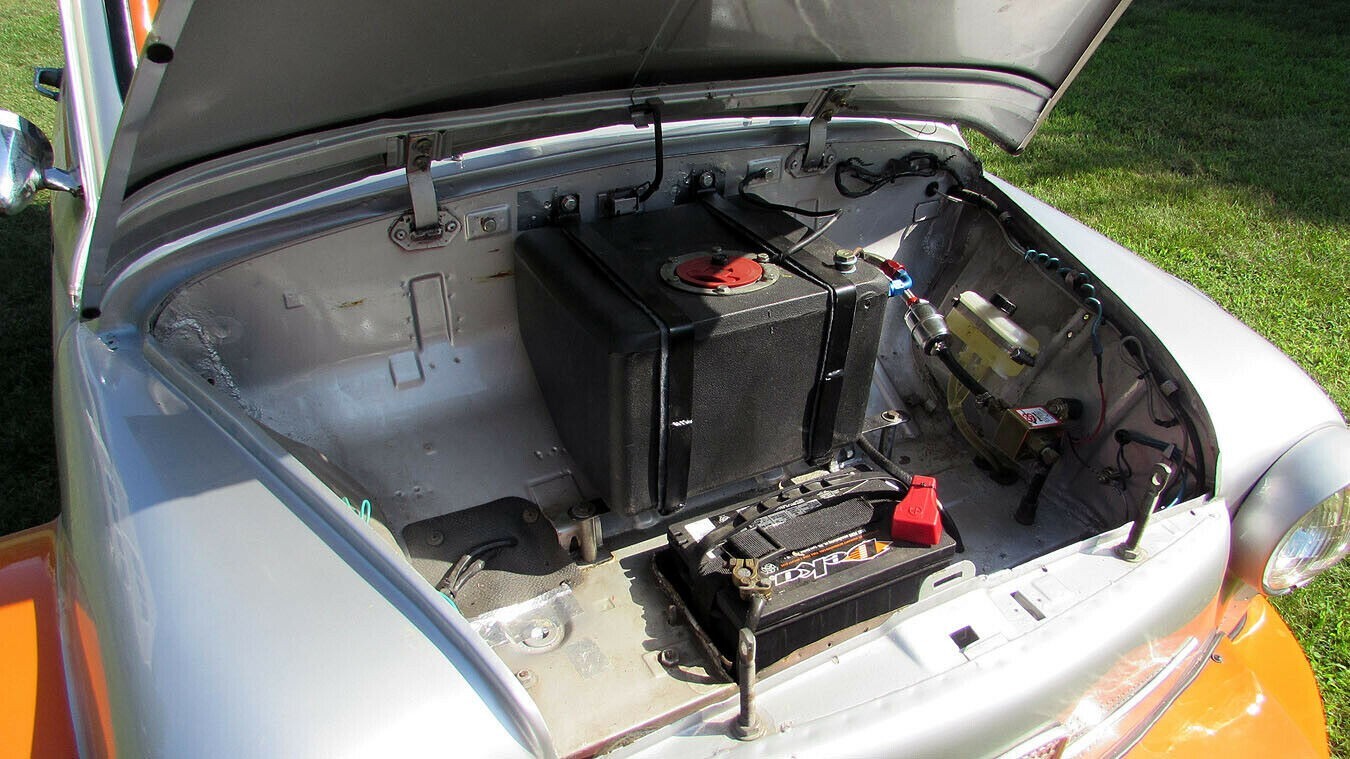

5 gallon fuel cell with electric fuel pump and filter.
Some spares will accompany the car
