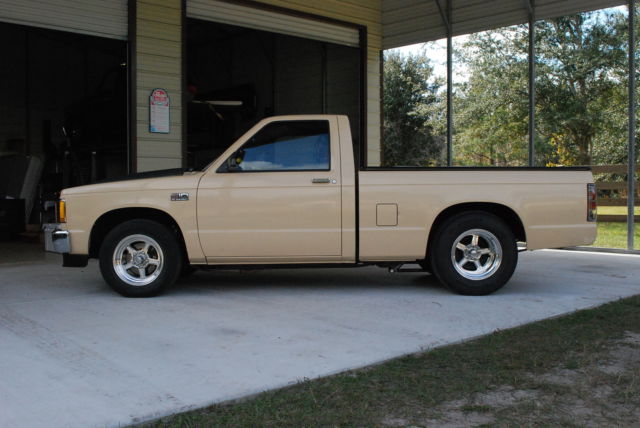

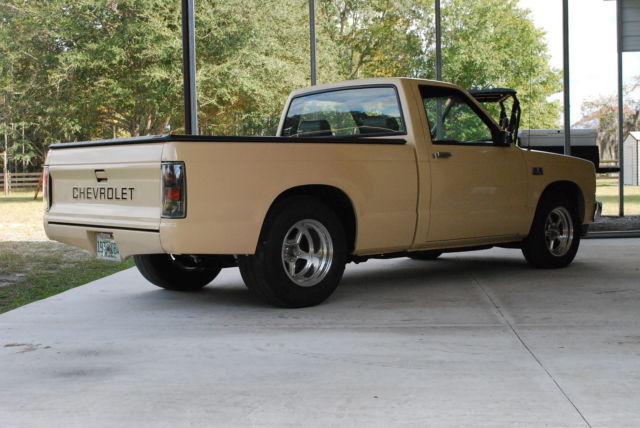

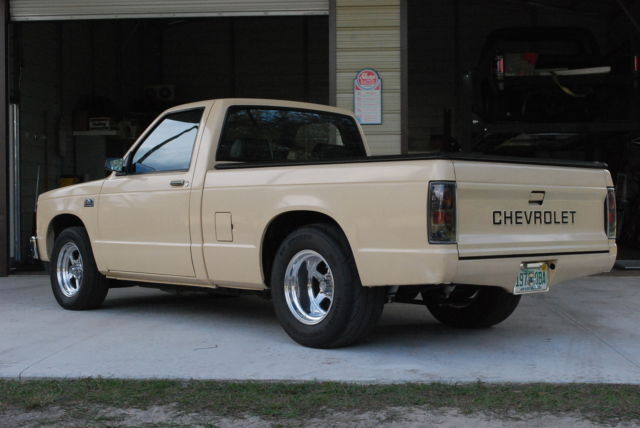

1987 Chevy S10 - V8 Pro Street
Vehicle Description

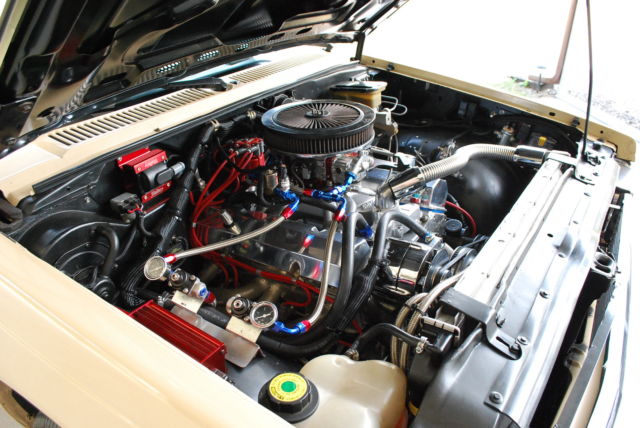

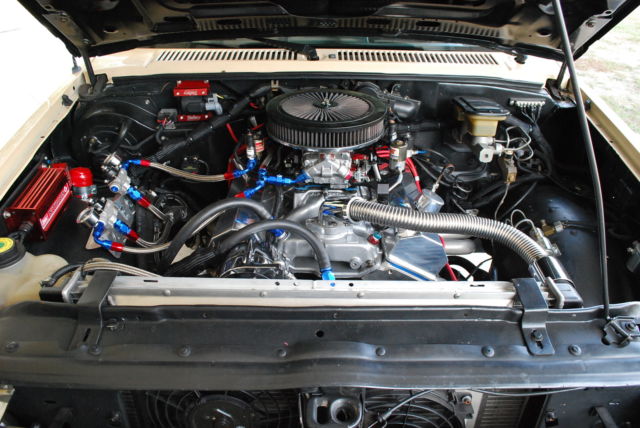

Engine:
* 406ci (400ci bored .30 over / externally balanced) Rebuilt Jan 2016
* Eagle Rotating Assy:3.7500 Stroke Cast Steel Crank,Mahle Forged, 4032 Short Skirt Pistons,5.70 I Beam Rods
* PowerBond sfi Race Series 8" Harmonic Balancer PB1050-SS
*Edelbrock 2201 Hyd Roller Cam / Roller Rocker (stock ratio)
* Edelbrock Hyd Roller Lifters 97423 / Edelbrock Hyd Roller Push Rods 9646 / Edelbrock Hyd Roller Springs 5845
*Edelbrock Performer RPM Aluminum Heads #60739
*Edlebrock RPM Airgap Intake #7501 - Powder Coated
*Felpro Racing Series Gaskets
*QFT Carb - Quick Fuel Technology 750cfm Mechanical Secondary
*Sanderson Short Tube Headers
*Dual 3" Exhaust w/Flowmaster Mufflers
*NOS Cheeter System: 125 Shot, Full Throttle Switch, Steering Wheel Button, Purge, Switched Bottle Heater, All AN & Stainless Braid Plumbing
*MSD Billet 2 Wire Magnetic Pickup Distributor
*Mallory Nitrous 6 CD Ignition Box w/Timing Retard: Set at 6,500 Rev Limit & -6 Retard on NOS activation
*MSD Starter Saver
*Mallory 30441 Coil
*MSD 8.5mm Super Conductor Plug Wires
*NGK Plugs: #8 Heat Range
*Oil - Joe Gibbs Racing Conventional 10/W30 with Zinc
*Wix Racing Filter
*Filter Mag FTM-SS365
* Remote Filter Mount
Trans:
* 350 Turbo w/Shift Kit
*Turbo Action Cheetah SCS Shifter w/Line Lock Button
*Turbo Action 10" Stall Converter 23807ST-12003
Rear:
*8-3/4" Chrysler Sure Grip/Posi Rear End w/Locker - 3:91 Ratio
*Green Bearing Conversion
*Narrowed to 56"
*1 ton U-Joints & Yokes
*Frame Narrowed 9" w/Mini Tub
Cooling:
* Aluminum Radiator w/DualElectricPusher Fans
Fuel:

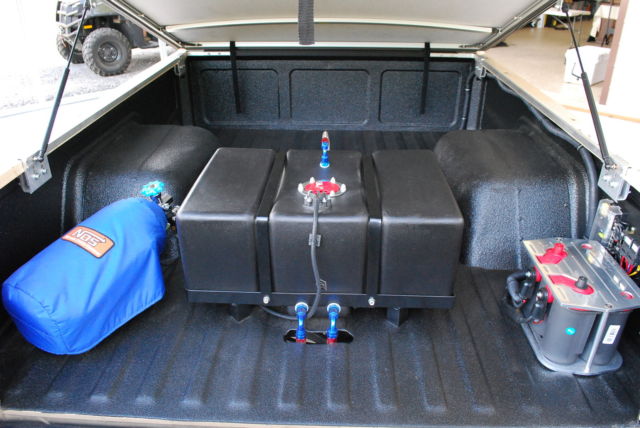

*16gal Fuel Cell w/Foam & Sending Unit
*Carb Feed - Holley 12-125 Geroter Electric Fuel Pump to Regulator @ 6psi
*NOS Feed - Holley Blue Rotor/Vane Electric Fuel Pump to Regulator @ 6psi
*Dual FST Performance Brackets w/FloMax350 Spin On Fuel Filters (4Micron)
*All AN Fittings & Stainless Braid Lines
Electrical:
* Bed MountedOptima Red Top Battery with Polished Billet Bracket
*Power Master 140A Chrome Alternator
* Power Master Mini Starter
Suspension:
*CaltracAdjustible Traction Bars
*Caltrac Split Mono-Leaf Springs - 2" De-arched w/20° Wedge
*Caltrac 9 Way Adjustable Rear Shocks
*Caltarc 90-10 Front Drag Shock
*UMI Performance Upper "A" Arms
*2" Drop Spindles
*Stock Coil Springs
*Front Tire 215/65R15
*Rear Tire Mickey Thompson ET Radial Street Slicks 295/55R15
*Front Wheel - Billet Specialties Street LIte 15" X 6" (5 on 4.75 - 3.5" Back Space)
*Rear Wheel - Billet Specialties Street Lite 15" X 10" (5 on 4.5 - 3.5" Back Space)
*3" Rear Wheel Studs w/Open Lugs (1/4X20)
*Std Front Studs (12X1.5)
*Hurst Line Lock
* Every Front End Component is new from Spindle to Spindle
Gauges:
*Autometer Pro Comp (Monster Tach, Oil Pressure, Water Temp, Voltage, NOS Electronic, NOS Fuel Electronic)
Roll Bar:
*Self designed / Fabricated by Overbuilt Customs
* Powder Coated Black Satin

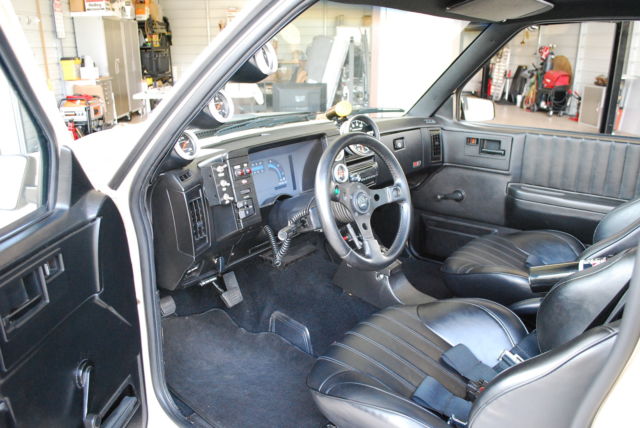

Interior:

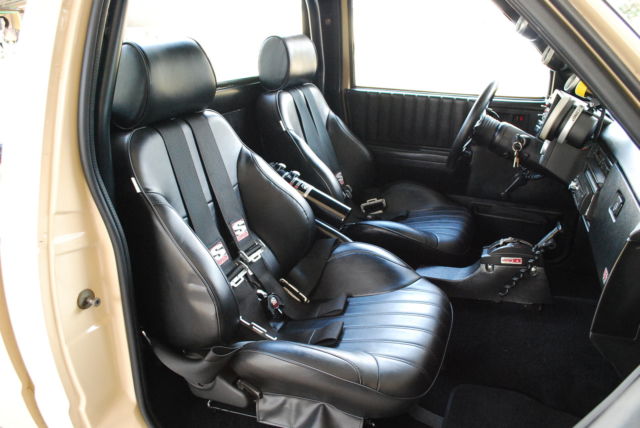

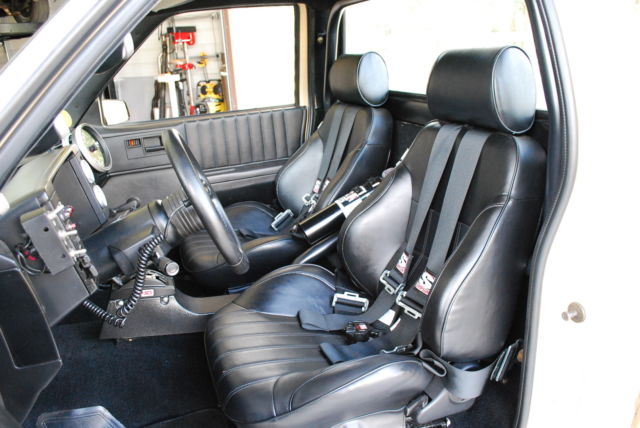

*Scat Procar Rally Series Bucket Seats - 80-1000-51 w/Brackets 81500/81501
*Stock Interiors Molded Carpet Kit 391 Black
*New Door Rubber / Weather Strip / Window Scrapers
*LED Dome Light 29-8330
*Black Powder Coat Fire Extinguisher - Roll Bar Mounted
*Interior Completely Lined in BoomMat Including Doors
* Grant Steering Wheel with NOS Button
* Pillar Gauge Pod

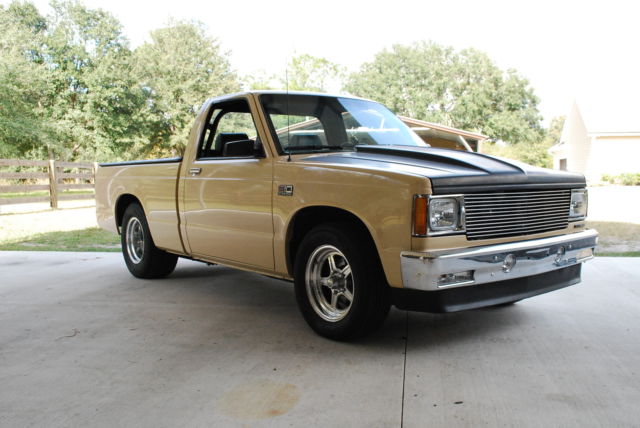

Body:
* Original Paint - No Rust
*Chrome Front Bumper w/2 Running Light
*Extang Full Tilt Bed Cover
*Spray In Bed Liner
*APG Polished SS Billet Grill

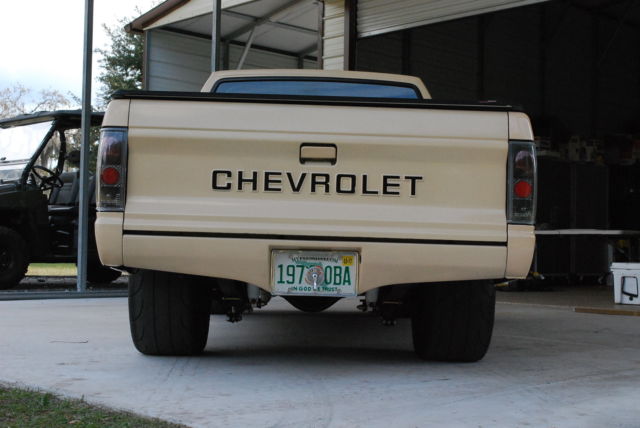

*Custom Tail Light Assy Gloss Black
*Chrome Headlight Bezels
*Chrome Door Handle Set-Outer
*HD Headlights 36-0282
*New Door Glass
*Cowl Induction Hood 2"
*Polished Billet Tag Bracket

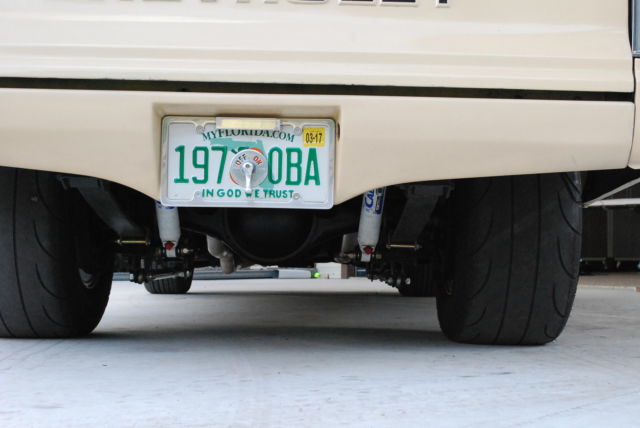

*Polished Billet On/Off Master Switch - Mounted in Center of Tag
* Rear Roll Pan
